Vertical packaging machines

MF 50 vertical packaging machine

Small vertical packaging machine for small formats. Ideal for medium-high production.

Fino a 35 BPM speed
Highlighted For small formats
MF 50 2

The MF 50 vertical packaging machine is the ideal solution for packaging small food products up to 1 kg

In fact, it is suitable for packaging a wide range of products with good fluidity and particle size.

Fra questi troviamo:

  • Snack
  • Dried fruits
  • Rice
  • Sugar
  • Legumes

The bags made (with minimum dimensions of 40x50 mm and maximum dimensions of 190x400 mm) can be pillow, square-bottom, four-seal, gusseted, riveted-edge or doypack type.

This model is made entirely of AISI 304 stainless steel, and the simplicity of operation makes it an extremely versatile solution.

IABA per prodotti granulari

Productions

In the standard version it achieves productions of up to 35 packs per minute. In the Speedy version, however, the packs are 105 per minute.

This high production capacity is achieved thanks to the special “high-low” movement of the sealing bars, driven by brushless motors.

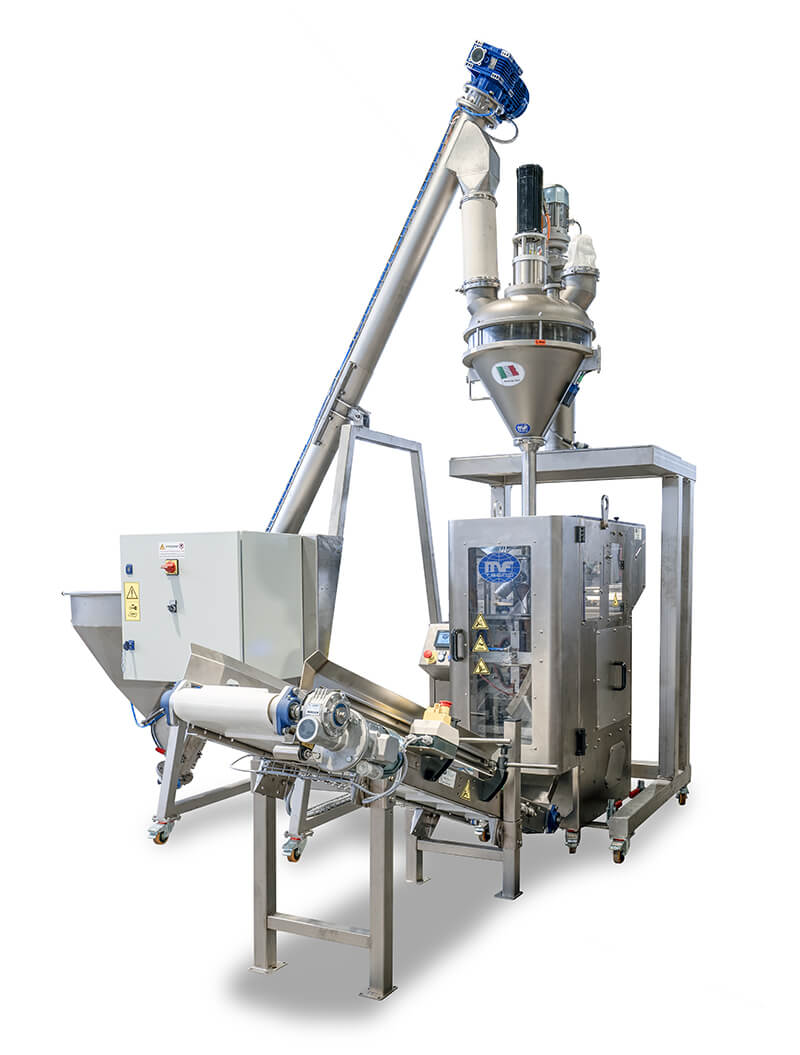

IABA per prodotti polverosi

Features

The package, formed around the tube, is sealed and heat-sealed vertically and horizontally without altering the material.

Depending on the product to be processed and the specific needs of the customer, different dosing systems are available.

The ease of inspection of these systems ensures cleanliness and prevention from any form of contamination.

The possibility of making packages in a controlled atmosphere also makes it possible to increase the preservation of the product.

This falls into a dosing/weighing basket, equipped with a discharge door. Whenever a dose is ready in the basket, the door opens to discharge the product into the bag.

Its reliability, small size, and excellent value for money make it a viable option for small- to medium-sized companies.

Thanks to the touch screen panel and alphanumeric display, the operator can control the operating cycle, various sealing parameters and pack sizes.

Fully manufactured in every component in our production center, it can be easily integrated with secondary packaging machinery.



Below is an in-depth look at our vertical packaging machines.

Discover more ❯


Request information

Download pdf
MF 50 3
MF 50 4

FEATURES AND BENEFITS

There are many reasons to choose our products

  • 01 Small clearance: it occupies less than 1 m²
  • 02 User-friendly: with compressor option installed, it only requires an electric power supply.
  • 03 Easy to clean and maximum sanitisation thanks to the construction design entirely in AISI 304/L stainless steel and the particular sealed cabling
  • 04 The exclusive sealing bars coupled with a special temperature control system guarantee maximum bag sealing in the presence of any product.
  • 05 Production speed: the film drive system and the choice of PLC-managed dedicated electronics allow high productivity with all materials and with any format.
  • 06 Flexibility of formats: quick exchange of the forming tube, fitted with quick release device, makes it possible to pass from one format to another very easily and quickly.
  • 07 Automatic control of the correct operating cycle
  • 08 Touch-screen operator panel
  • 09 Self-diagnosis system for anomalies and verification via display.
  • 10 Machine compliant with the criteria envisioned for access to Industry 4.0 incentives.

DIFFERENT OPTIONS

FOR A PERFECT SOLUTION

Pneumatic device for the creation of lateral gussets

Modified Atmosphere Device

Marker

Printer

Tag device

Device for the removal of static electricity

Device for the clinched edges

Your products

FIND OUT WHICH PRODUCTS YOU CAN PACKAGE WITH THIS MACHINE

MF 50 5
Foodstuffs
  • Starch and Gluten
  • Pastry Premix
  • Coffee
  • Biscuits
  • Sweets and Candies
  • Powdered milk
  • Legumes
  • Rice
  • Salt
  • Flour
  • Spices
  • Sugar
  • Tea
  • Dried fruits
  • Pasta
  • Crisps
  • Snacks
  • Deep-frozen products
MF 50 6
Chemicals
  • Washing powders
  • Manure
  • Fertilisers
  • Frits
  • Colourants
  • Pigments
  • Polymers
  • Plastic granules
  • Ceramic glazes
MF 50 7
Animal Feed
  • Ingredients, additives (Premix) and supplements for animal feed
  • Bird seed
  • Animal feed
  • Fish food
MF 50 8
Pet Food
  • Pet Food
MF 50 9
Cat litters
  • Cat litters
MF 50 10
Metal Hardware
  • Metal hardware
