The MF 58 vertical packaging machine is the ideal solution for anyone looking for a reliable machine for medium-high production and medium-large formats.
This machine is a particularly popular and well-regarded model across numerous industry sectors for processing a wide variety of products, the most common of which include potting soil, compost, sand, aggregates, plastic granules, seeds, feed, pet food, and pellets.
Output and Bag Types

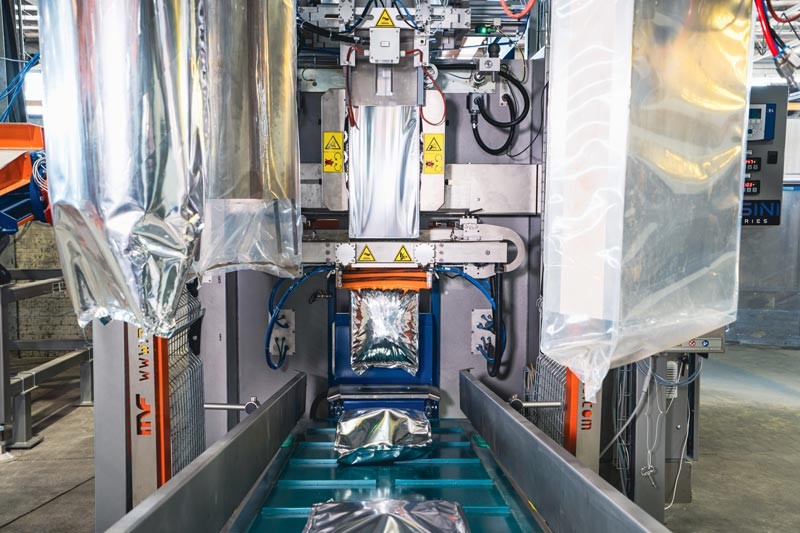

Starting from a reel of flat film, the machine pulls the film down by means of a pair of rubberized tracks driven by a servo-motor, keeping it under constant tension as it passes through the forming tube, which shapes it to the desired size and allows the product to be filled in.

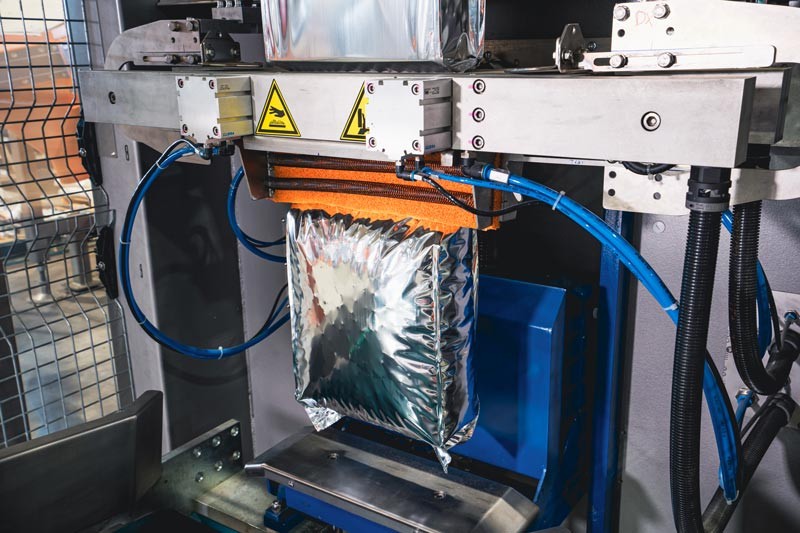

The sealing bars, positioned at the end of the machine, seal the bag by means of impulse sealing, ensuring a perfect closure without damaging the material, and separate each bag from the next.
With this technology, the MF 58 achieves impressive output, reaching 1,200 bags/hour for formats ranging from 11 to 66 lbs. The finished bags can reach a maximum size of 22.8 x 38.5 inches / and a minimum 12.9 x 15.7 inches.
The machine is designed to handle different bag types:
- Pillow bag
- Gusseted bag
- Four-seal bag
Thanks to its flexibility, the MF 58 works with a wide range of packaging materials, including polyethylene (PE), polypropylene (PP), and laminates, making it suitable for numerous application sectors.
Control, Sturdiness, and Safety
The MF 58 stands out for its extreme ease of use and high compatibility with various types of scales.
Via an intuitive touchscreen panel, the operator has full control over the operating cycle, easily managing sealing parameters and bag dimensions.
Safety and durability are at the heart of the machine's construction:
- Sturdy structure: the framework is made of AISI 304 stainless steel and top-quality electronics are used, a combination that ensures optimal performance over time and maximizes the return on investment.
- Operator safety: a set of perimeter guards marks out the working area, protecting both the machinery and the safety of personnel while the plant is running.
Integration into Complete Lines
Entirely manufactured in every component within MF TECNO's production facilities, the MF 58 is designed to be easily integrated into automatic lines.
Often installed as the heart of a complete packaging plant, it combines perfectly with palletizing systems and pallet wrappers.
A typical and highly efficient combination involves installing it upstream of a PCA SMART palletizer, a Cartesian palletizer with medium output, and a WRAP 35 pallet wrapper.
Below is an in-depth look at our vertical packaging machines.
