Big-bag

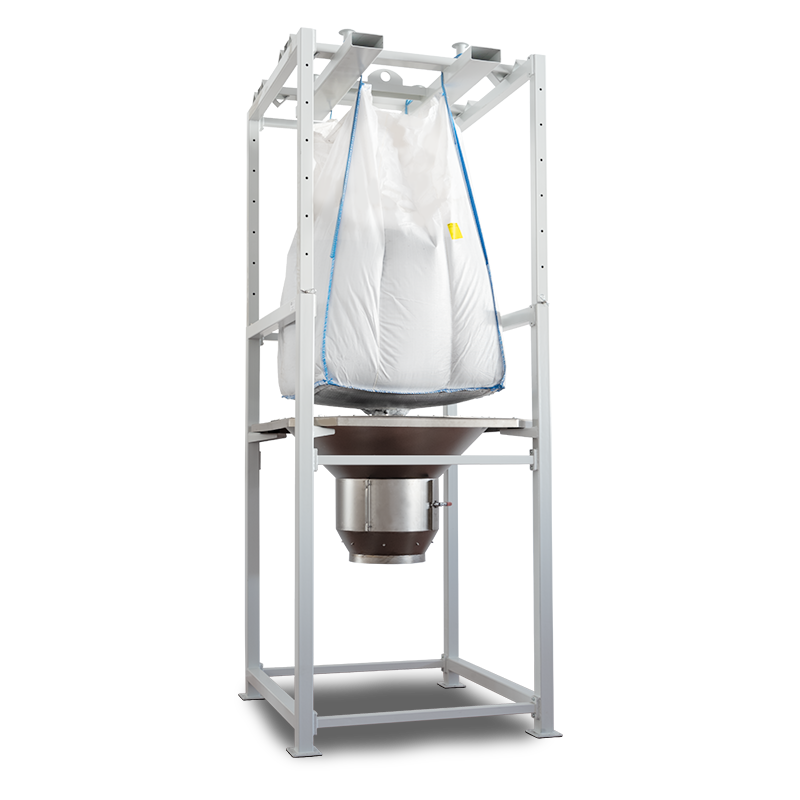

BIG BAG Unloader

The Bulk Bag Discharger (also known as FIBC or Jumbo bag Discharger) is designed to discharge up to 2 cubic meters of bulk material, ensuring an automatic and complete powder and granular product discharge.

Highlight Easy opening of the Big Bags
BIG BAG Unloader 2

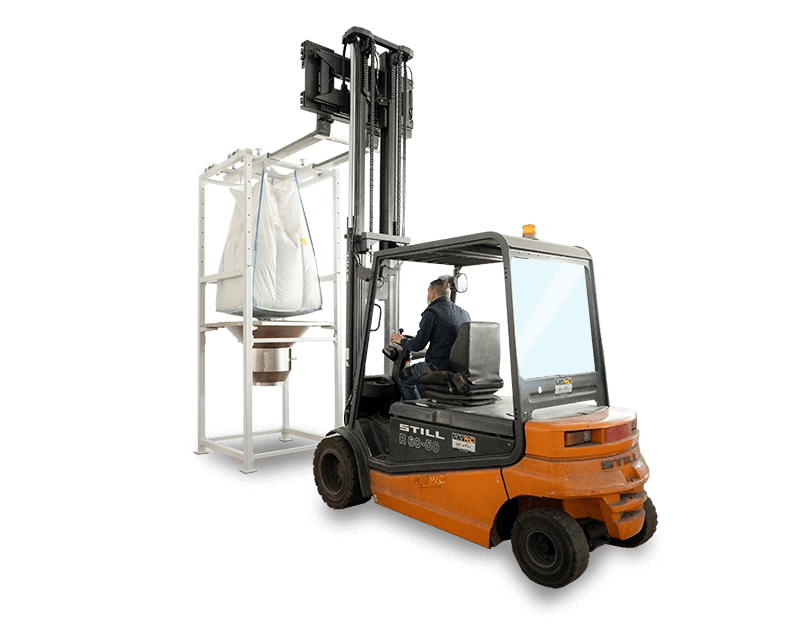

The Big Bag unload system is made up from a fork-mounted frame onto which the support straps of the Big Bag are fixed. A lifting truck is used to safely position it on strong steel height-adjustable tubular framework.

Once in position, the operator can safely open the Big Bag.

Every structure is set-up to be connected to a centralised extractor system in order to eliminate the dusts in the emptying phase.

The construction with parts in contact in AISI304 stainless steel, make it suitable for many fields of application.

Request information

BIG BAG Unloader 3
BIG BAG Unloader 4
BIG BAG Unloader 5
BIG BAG Unloader 6
BIG BAG Unloader 7

FEATURES AND BENEFITS

There are many reasons to choose our products

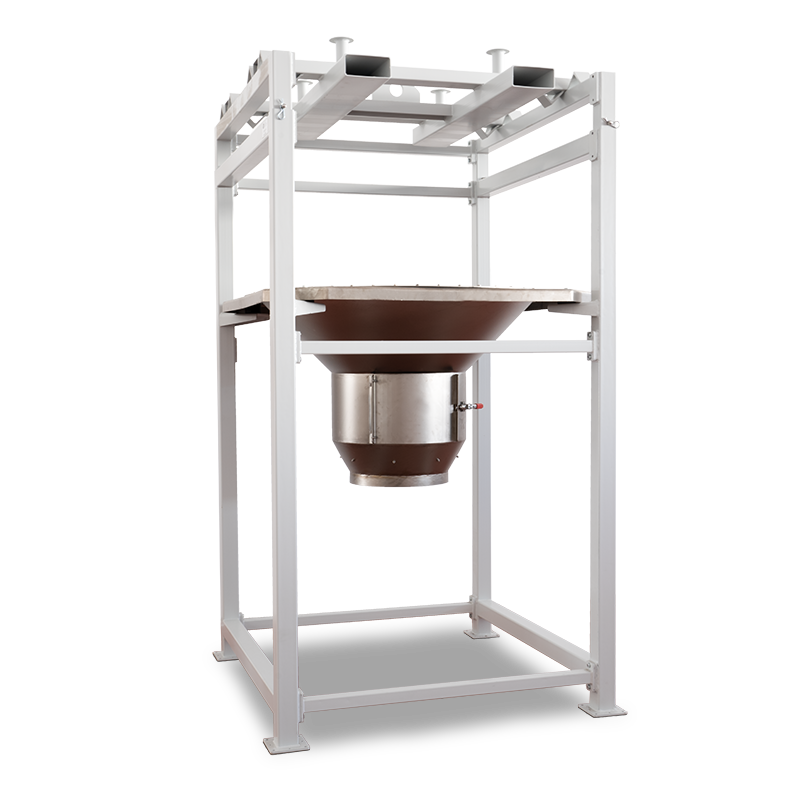

  • 01 Strong tubular structure.
  • 02 Height-adjustable depending on the dimensions of the Big Bag.
  • 03 Opening point of the Big Bag positioned under the receiving hopper in a way to perform the operation in complete safety.
  • 04 Rubber protection to prevent the product and dusts escaping.
  • 05 Set-up for Vibrator.
  • 06 Protection net inside the hopper.

DIFFERENT OPTIONS

FOR A PERFECT SOLUTION

Vibrator

Dust extraction and filtering system

In AISI316

Loading the Big Bag with motorised winch on track

Unloading conveyors

Special executions
