FFS Tubular Machine

FFS Tubular bagging machine

The MF TUBE FFS (Form Fill & Seal) Tubular machine was created to manage the packaging of free-flowing, powdery and granular products.

Up to 33 BPM speed
Highlight High production
FFS Tubular bagging machine 2

The Tubular FFS Form Fill Seal Machine MF TUBE was designed to handle high-speed packaging of free-flowing, powdery, and granular products.

Engineered to ensure maximum productivity and reliability, it reaches performances of up to 2,000 bags/hour, depending on the characteristics of the product being bagged.

Its structure is built entirely from AISI 304/L Stainless Steel, making it ideal for both food products and the bagging of chemical or aggressive substances.

Thanks to its extremely compact footprint, the machine can easily be installed even in tight production spaces.



How It Works

The packaging cycle of the MF TUBE operates through three high-precision stations:

  1. Station 1 - Forming and Cutting: Sealing the bottom of the bag and cutting the tubular film to the predetermined length.
  2. Station 2 - Filling: Accurate dosing and filling of the bag through the discharge spout.
  3. Station 3 - Top Sealing: Final closing and sealing of the bag mouth.







Parameter Value / Feature
Maximum speed Up to 33 Bpm (2,000 bags/hour)
Bag types Pillow bags, Gusseted bags
Minimum bag dimensions 320 x 550 mm
Maximum bag dimensions 480 x 900 mm
Construction material AISI 304/L Stainless Steel
Control and Automation PLC with Touch-Screen Operator Panel and remote management



Tubular Form Fill Seal Machine

Main Advantages of the MF TUBE

  • Robust, Compact, and Modular Design: Solid structure suitable for the most demanding industrial environments and easily adaptable to any production layout.

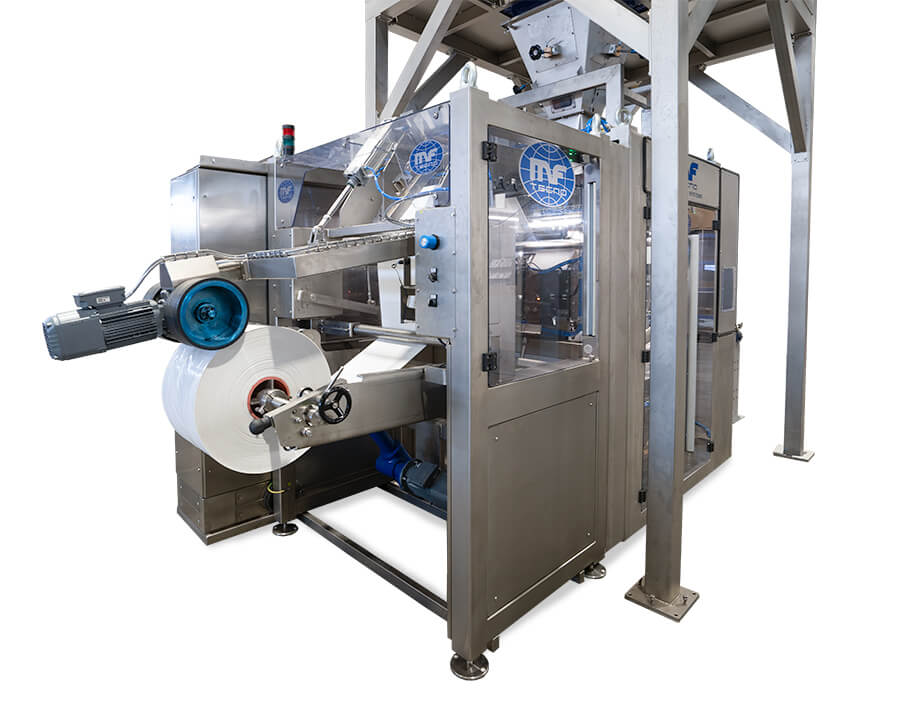

  • Electric Reel Lifter: Allows film reel loading in total safety without requiring external lifting equipment.
  • Reel Micro-Perforation: Integrated system for air evacuation from inside the bag, optimizing package compactness and stability.
  • 45° Corner Sealing: Applied on the bottom and top corners to improve the aesthetic shape and structural stability of the bag.
  • Maximum Hygiene and Easy Cleaning: Built entirely from AISI 304/L Stainless Steel with watertight wiring to prevent deposits and facilitate washing operations.
  • Advanced Electronics and PLC Management: Automatic cycle control, touch-screen operator panel, and support for remote teleassistance.





Tubular FFS

Fields of Application

The FFS MF TUBE machine is a versatile solution suitable for packaging a wide range of bulk products:

  • Food Industry: Flour, grains, salt, sugar, animal feed, pet food, and food additives.
  • Chemical and Corrosive Industry: Fertilizers, industrial salts, plastic pellets, and aggressive chemical compounds.
  • Construction and Mining Industry: Sand, specialized cements, mortars, and granular or powder building materials.



Complete Plant Solutions

MF TECNO boasts over 20 years of experience in designing and installing high-tech complete systems.

The FFS MF TUBE form fill seal machine integrates perfectly upstream and downstream with palletizing, cartoning, and stretch wrapping systems.







Below is a detailed overview of the Tubular Form Fill Seal Machine.

Find out more ❯
  Request information

Download pdf
FFS Tubular bagging machine 3
FFS Tubular bagging machine 4
FFS Tubular bagging machine 5
FFS Tubular bagging machine 6
FFS Tubular bagging machine 7

FEATURES AND BENEFITS

There are many reasons to choose our products

  • 01 Robust, compact and modular design
  • 02 Electric reel lifter to allow the reel to be loaded without the use of external lifting means
  • 03 Micro-perforated reel to allow air escape from the bag
  • 04 45 ° sealing of the corners (K-sealing) for a perfect bag formation
  • 05 Ease of cleaning and maximum hygiene standards: structure designed for easy cleaning, entirely mado of AISI 304 / L stainless steel, watertight wiring
  • 06 High production speed: the film dragging system and the PLC electric control panel, allow to reach very high productivity with any material and bag format
  • 07 Electrical control panel with latest generation PLC and touchscreen panel
  • 08 Pannello operatore touch-screen
  • 09 Display equipped with ability to self-diagnose abnormalities
  • 10 Compliance of the machinery with the criteria required by Industry 4.0

DIFFERENT OPTIONS

FOR A PERFECT SOLUTION

Pneumatic device for the creation of lateral gussets

Check-weigher with ejector

Annular metal detector

Remote Assistance

K sealing device

Product conveyor and loading system
