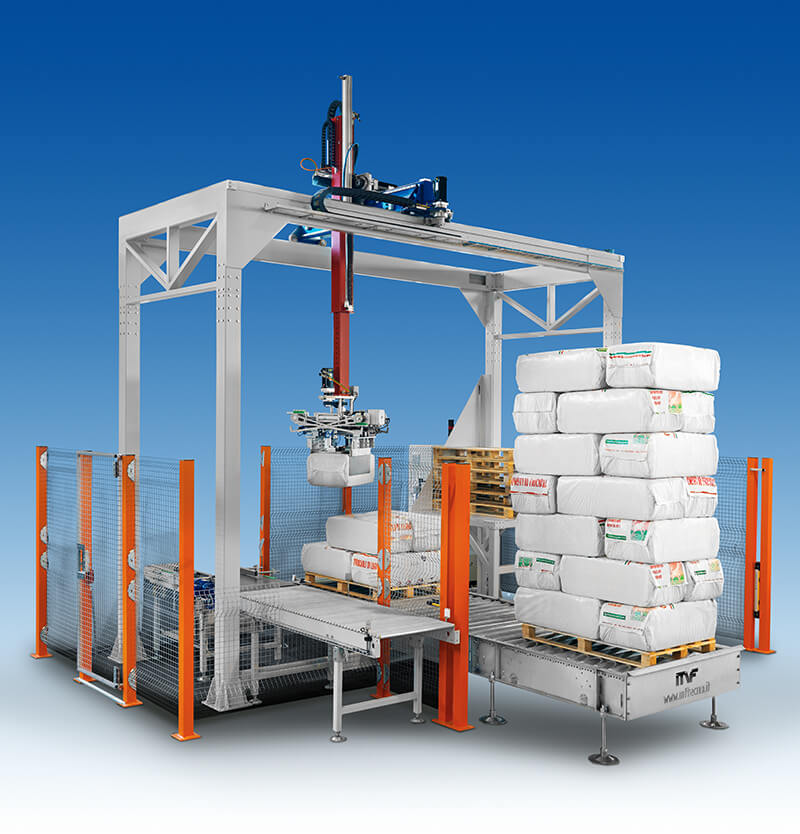

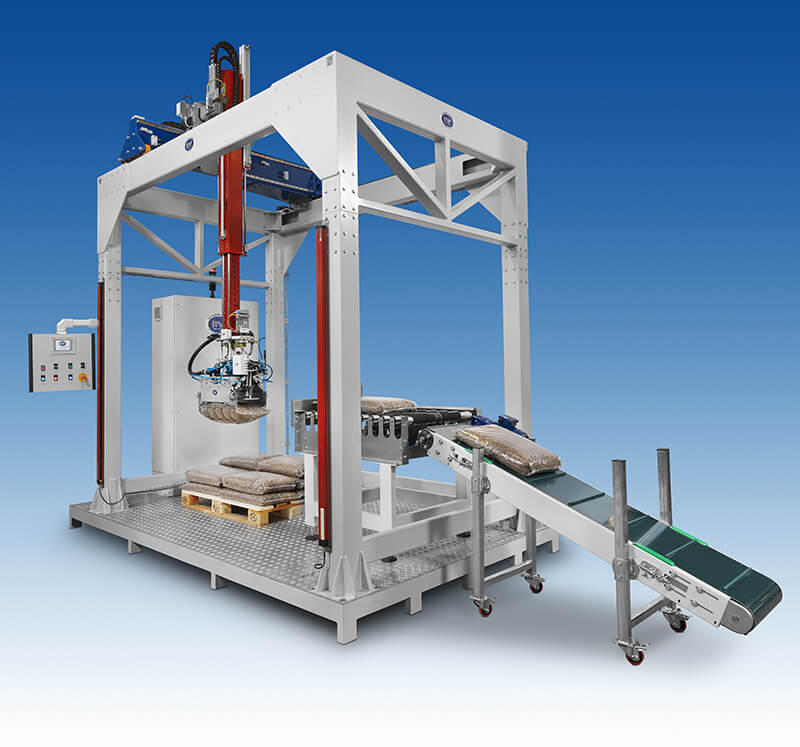

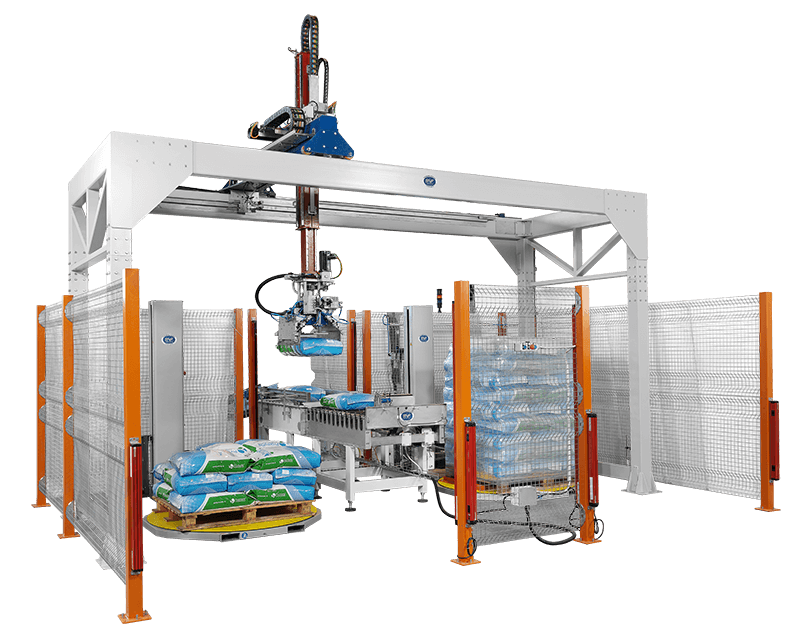

The PCA 700 Twin model is a Cartesian palletiser designed for medium-high production rates of up to 700 cycles/hour.
Based on a 4-column structure and a vertical telescopic arm, it can handle loads of up to 50 kg.
The double palletising station allows continuous operation without interrupting the production cycle. Once the pallet in the first station is ready, processing of the other pallet begins automatically.
This model is particularly suitable for products such as seeds, cereals, aggregates, pellets, plastic granules and many others.
Its modularity and the availability of different mounting systems allow it to adapt to different environments and application contexts.
Available gripping systems
This type of palletiser can be adapted to different gripping models. Customisable solutions with various options available based on specific customer requirements.
These include:
- Gripping head with special clamp for boxes
- Suction cup gripping head
- Fork gripping head with presser
These enable the precise and efficient handling, picking, and palletizing of preformed bags, reel bags, valve bags, and boxes.
Command and control panel
The operator has total control of the palletising pattern thanks to the PLC system equipped with a touch screen panel.
It is possible to modify a previous programme by adjusting the speed or create a new one according to the specific requirements of the project.
The automatic self-diagnostic system allows you to view warnings and possible alarm messages. This facilitates communication in the event of remote assistance.
Safety devices
We offer solutions that ensure work is carried out in compliance with the law and guarantee operator safety.
The machinery is enclosed within protection and safety systems. Special photoelectric barriers are provided for access to the palletiser.
What is the advantage of the double filling station?
The advantage of the double filling station is that it allows you to change the pallet being created without stopping production. One station works while the other is being prepared. There is no interruption.
What types of products can the double filling station palletiser handle?
Among the many products it can handle are seeds, cereals, pet food, pellets, plastic granules and aggregates.
Can the double filling station palletising pattern be customised?
Yes. The operator can easily set or modify programmes via PLC with a touch screen panel.
Is there an error diagnostic system?
Yes. The self-diagnostic system with touch screen panel signals all types of alarms and anomalies.
Can the palletiser be integrated into existing lines?
Yes, the palletiser can be easily integrated with secondary packaging systems such as cartoning machines and secondary packaging systems. MF Tecno specialises in the manufacture of turnkey packaging systems.
