Vertical packaging machines - VFFS

MF 60 VACUUM vertical packaging machine

Vertical packaging machine for large vacuum-packed formats. Ideal for medium production.

Up to 100 cycles/h speed
Highlight Vacuum packing for large formats
MF 60 VACUUM 2

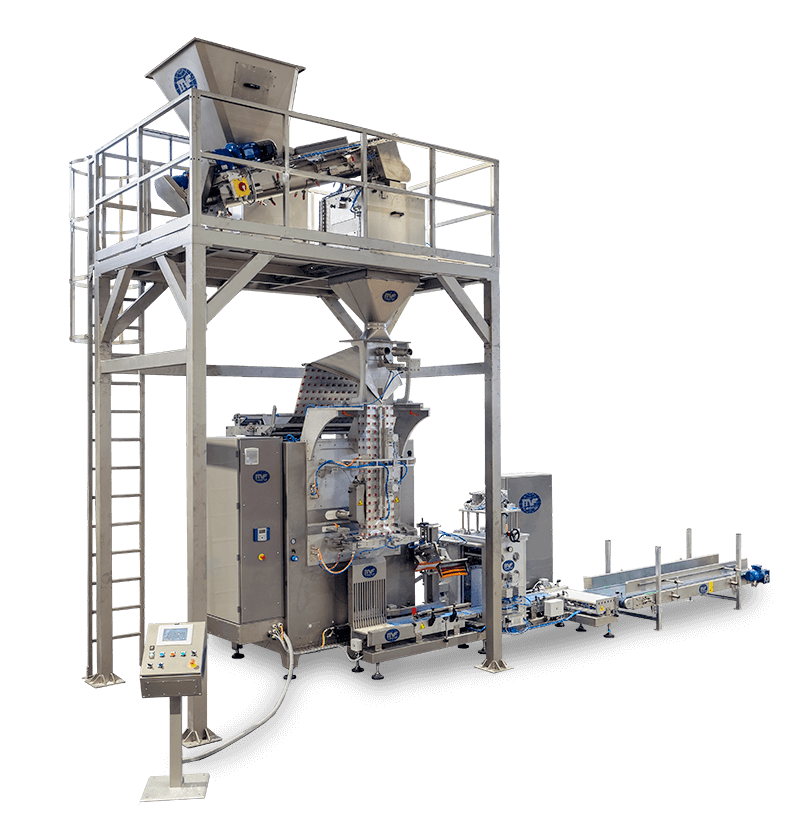

The MF 60 VACUUM vertical packaging machine is the perfect machine for the production of large formats with vacuum packaging.

This is particularly suited when it is necessary to extend the life of products and make compact, regular and easy-to-process bags.

The packages have a minimum dimension of 330x400 mm up to 630x1080 mm and a weight between 5 and 50 kg.

Dependable and efficient machine, reaches outputs of 100-120 bags/hour, with single vacuum chamber.

It is primarily used in the processing of pet food, seeds, animal feed and plastic granules.

The possibility of applying different accessories and dosing systems, depending on the needs, product and requirements of the customer, guarantees versatility and the ability to process a wide range of goods.

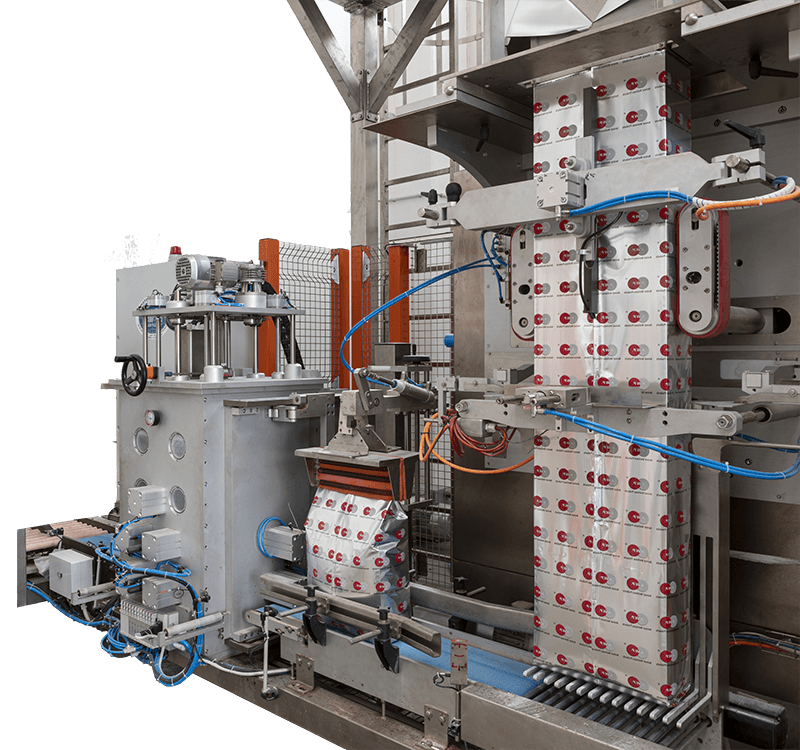

The package is created from a flat reel around a forming tube and then thermally sealed.

Pulse sealing allows bags to be formed and closed without altering the material and creates perfectly sealed bags for subsequent vacuum sealing.

The vacuum chamber, positioned outside the machine, depending on the size of the bags, can be single or double depending on the customer's production requirements.

Both the vacuum bell and the forming tube are designed to make any format change fast and simple.

Made of stainless steel, the operator has total control of the entire cycle through a handy touchscreen panel.





Below there is an in-depth look at our vertical packaging machines

Discover more ❯


Request information

Download pdf
MF 60 VACUUM 3

FEATURES AND BENEFITS

There are many reasons to choose our products

  • 01 Creation of perfect, compact and geometrically square vacuum packages.
  • 02 Electronic management system that can constantly monitor the entire operating cycle.
  • 03 Plant easy to clean and the dosing elements and parts in contact can be inspected completely.
  • 04 Format flexibility: The particular design of the vacuum unit's casing allows for extremely fast format changes.
  • 05 Touch-screen operator panel.
  • 06 Self-diagnosis system for anomalies and verification via display.

DIFFERENT OPTIONS

FOR A PERFECT SOLUTION

Pneumatic device for the creation of lateral gussets

Modified Atmosphere Device

Marker

Device for the removal of static electricity

Device for the clinched edges

4-sealing device

Check-weigher with ejector

Annular metal detector

Remote assistance

Product conveyor and loading system

Your products

FIND OUT WHICH PRODUCTS YOU CAN PACKAGE WITH THIS MACHINE

MF 60 VACUUM 4
Foodstuffs
  • Pastry premix
  • Coffee
  • Rice
  • Flour
  • Tea
  • Dried fruits
MF 60 VACUUM 5
Cereals and Seeds
  • Cereals
  • Sorghum seeds
  • Sunflower seeds
  • Maize seeds
  • Soybeans
MF 60 VACUUM 6
Animal Feed
  • Ingredients, additives (Premix) and supplements for animal feed
  • Bird seed
  • Animal feed
  • Fish food
MF 60 VACUUM 7
Pet Food
  • Pet Food
