Vertical Packaging Machine - VFFS: MF TECNO Solutions

Case history
Vertical Packaging Machine - VFFS: MF TECNO Solutions 1

A vertical packaging machine is a machine for packaging bulk products in bags. The packing machine introduces the product into the forming tube from the top opening, through which it falls into the bag, formed from a flat film reel, which is sealed and then ejected at the bottom of the machine.

This method is called VFFS (Vertical Form, Fill and Seal) and guarantees excellent results in terms of efficiency and accuracy.

MF TECNO develops high-tech, bulk product packaging machinery that is adaptable to various bags: pillow, gusseted, square bottom, double square bottom, zipped and bags with handles.

The right machine for your production needs

We have developed different versions for all sizes: small, medium and large.

This range of products is studied for filling bags from 50 g up to 30+ kg. Below you will find a list of all the VFFS's machinery produced by MF TECNO.

Vertical packaging machine for small formats from 50 gr to 1 Kg.

For the packaging of small formats, MF TECNO has developed 2 different vertical packaging machines.

MF 50

This machine, ideal for handling a wide range of products in small formats is characterized by its small footprint since it occupies less than 1 square meter, simplicity and ease of use.

Available in various versions depending on the product to be handled:

  • MF 50/S for solid, granular and non-granular products
  • MF 50/L for liquid, dairy, and brine products
  • MF 50/N for modified atmosphere (ATM)

The MF 50 is also capable of making square-bottom bags in addition to pillow bags, which are in high demand in the food industry. The bags it can handle have a minimum size of 65 x 60 mm and a maximum size of 180 x 270 mm

MF 50 SPEEDY

The MF 50 SPEEDY is a continuous vertical packaging machine for small formats. Ideal for high production, it can reach up to 105 bags per minute. It is a fast machine, flexible in format changeover, and easy to operate and maintain.

The MF 50 SPEEDY represents state-of-the-art technology that offers high performance. Compact and adaptable even to tight spaces. The bags it can create are a minimum size of 40 x 50 mm and a maximum of 190 x 400 mm.

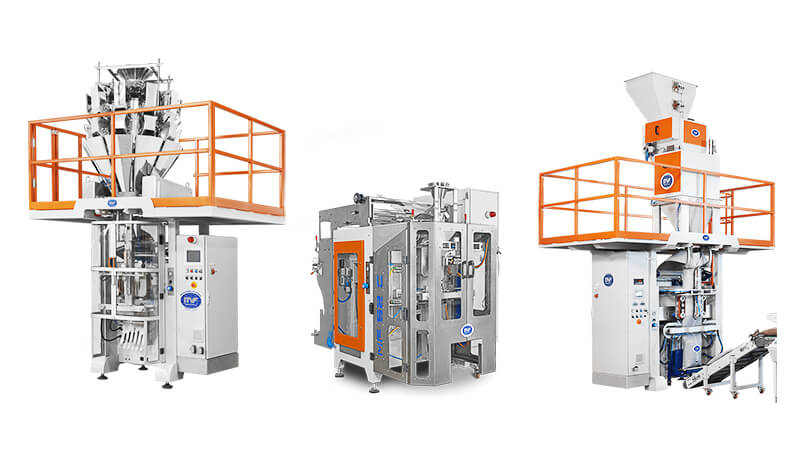

Vertical packaging machine for medium formats from 1 to 5 kg

For medium formats, MF TECNO has developed 4 different machines.

MF 52

The MF 52 is ideal for medium and high production and can pack up to 50 bags per minute. Equipped with brushless servo motors, it can reach high production speeds and is suitable for all industrial applications that require fast and consistent production.

Starting with a flat sheet reel, the MF 52 packaging machine can produce a wide range of bag sizes and types.

The filling can take place in a modified atmosphere. The bags that this packaging machine can pack are a minimum size of 120 x 100 mm and a maximum size of 330 x 400 mm.

MF 52 SPEEDY

The MF 52 SPEEDY is a high-speed continuous motion solution. It is ideal for high production. Reaching up to 80 bags per minute, it is characterised by its high production qualities and ability to adapt to various production situations.

It represents the ideal tool for anyone who wants to pack their products quickly and hermetically. The bags that this packaging machine can pack have a minimum size of 120 x 100 mm and a maximum size of 330 x 400 mm.

MF 52 VACUUM

The MF 52 VACUUM vacuum packaging machine is ideal for medium to high production. The use of this packaging solution is indicated when there is a need to extend the life of products.

At the same time, the vacuum process makes it possible to obtain a perfectly squared and compact bag. The bags that this packaging machine can pack are a minimum size of 120 x 100 mm and a maximum size of 330 x 400 mm.

MF 52 DFQ (Double Square Bottom).

The MF 52 DFQ is designed for double square bottom packs with an Automatic carousel. It is ideal for medium and high production. Ideal for food products, it makes double square bottom bags that are compact, airless and absolutely square in shape. The bags that this packaging machine can make are a minimum size of 120 x 100 mm and a maximum size of 330 x 400 mm.

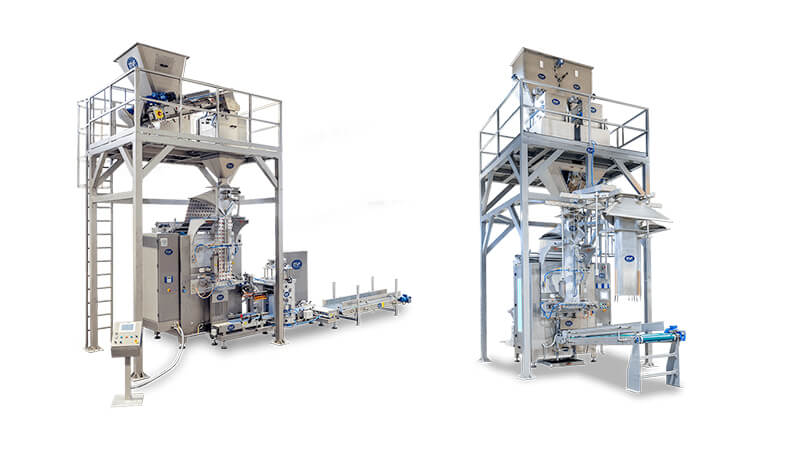

Vertical packaging machine for large formats from 5 to 30 kg.

For handling large formats, MF TECNO has developed 4 different models of vertical packaging machine.

MF 54

The MF 54 vertical packaging machine for medium-high production, stands out for its extreme ease of use and great versatility, which allows its inclusion in so many other sectors: feed, cereals, flour, sand, aggregates, soil, bark, supplements, oxides, etc. The MF 54 constitutes the intermediate model of MF TECNO packaging machines and is a solution, reliable and performing. The bags have minimum dimensions of 230 x 300 mm and maximum dimensions of 470 x 680 mm.

MF 58

MF 58 represents the ideal solution for automatically forming, filling and closing, large bags for bulk products. These include potting soil, seed, feed, plastic granule, and low-density products of various grain sizes. The bags that this packaging machine can pack are a minimum size of 330 x 400 mm and a maximum size of 580 x 980 mm.

MF 58 VACUUM

MF 58 VACUUM is designed for making large sizes with vacuum packaging. Due to the large size of the bags, the vacuum bell is positioned outside the machine, in a lateral position. The vacuum bell can be double or single according to production needs and is designed to make the format change functional and quick. The bags that this packaging machine can pack are a minimum size of 330 x 400 mm and a maximum size of 580 x 980 mm.

MF 60

The MF 60 Vertical Packaging Machine is the ideal solution for automatically forming, filling and closing large bags. Some examples of products that can be packed with this machine are Potting soil, seed, feed, plastic granule, Pet Food, and low-density products of various grain sizes. The bags that this packaging machine can pack are a minimum size of 350 x 600 mm and a maximum size of 630 x 1180 mm.

A wide range of products that can be packed, high outputs, simple construction and very low operating costs are just some of the strengths of these packaging machines. The structure of the automatic machines can be made of painted iron or stainless steel to meet any requirement.

Batchers, weighing machines and conveying systems complete the product range to achieve complete weighing, packaging, palletizing and wrapping systems for the finished pallet.

All MF TECNO's experience is always at your disposal to support you in choosing the best-suited packaging system for your production needs.
