Shrink wrappers

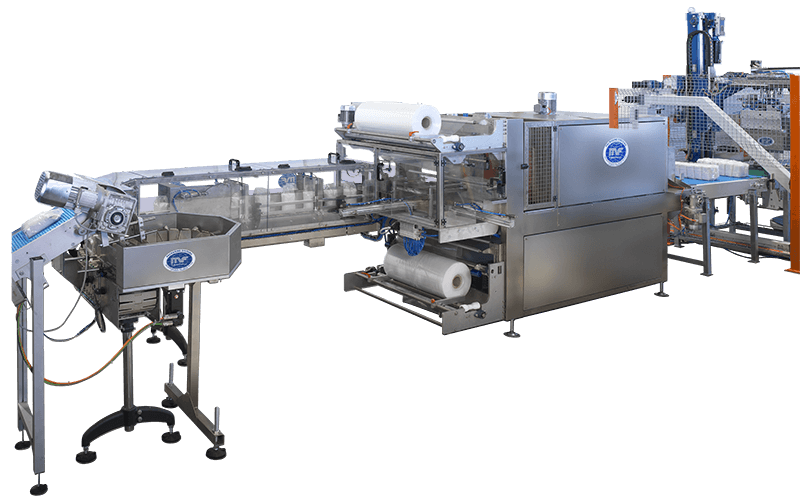

MF BUNDLEE-V shrink wrapper

series V

Automatic shrink wrapper using heat-shrinkable film for packaging bags with square block bottom, bricks and cases arriving vertically on the infeed belt. Ideal for medium and high production.

Up to 10 bundles/min for speed
Highlighted For stand-up bag
MF BUNDLEE-V 2
  • Row formation unit: the module is composed of a bags reception carousel followed by a sorting device to distribute the packages on 2 rows and, finally, a pneumatic pusher for transfer of the pairs formed onto the bundle pre-forming belt
  • Sealing unit of the heat-shrinkable film around the bundle: the ends of the film, unwound by two reels, are sealed via a sealing bar
  • Heat-shrinking tunnel: final module of the plant where the possibility of adjusting the speed and temperature of heat-shrinking inside the tunnel from the panel, allows a perfect bundle to be obtained.
Thanks to advanced electronics and strong frame, the MF BUNDLEE-V is a simple, reliable and economic solution for a wide variety of products.

Request information

Download pdf
MF BUNDLEE-V 3

FEATURES AND BENEFITS

There are many reasons to choose our products

  • 01 Stainless steel structure
  • 02 Main drives via brushless motors
  • 03 Teflon-coated impulse sealing bar
  • 04 Conveyor belts electronic speed adjustment
  • 05 Motorised reel unwinder
  • 06 Electronic adjustment of heat-shrinking temperature and speed
  • 07 Product conveyed into the tunnel on steel mesh
  • 08 Electric plant managed by integrated PLC
  • 09 Armoured shaped tubular heating elements
  • 10 Self-cooled electric and electronic components
  • 11 Machine mounted on height-adjustable feet
  • 12 Pneumatically driven sealing bar.
  • 13 Materials: PPE
  • 14 EEC compliant material.

DIFFERENT OPTIONS

FOR A PERFECT SOLUTION

Remote assistance

Your products

FIND OUT WHICH PRODUCTS YOU CAN PACKAGE WITH THIS MACHINE

MF BUNDLEE-V 4
Foodstuffs
  • Starch and Gluten
  • Pastry premix
  • Coffee
  • Biscuits
  • Sweets and Candies
  • Powdered milk
  • Legumes
  • Rice
  • Salt
  • Flour
  • Spices
  • Sugar
  • Tea
  • Dried fruits
  • Pasta
  • Crisps
  • Snacks
  • Deep-frozen products
MF BUNDLEE-V 5
Cereals and Seeds
  • Cereals
  • Alfalfa
  • Silage
  • Sorghum seeds
  • Sunflower seeds
  • Maize seeds
  • Soybeans
MF BUNDLEE-V 6
Chemicals
  • Washing powders
  • Manure
  • Fertilisers
  • Frits
  • Colourants
  • Pigments
  • Polymers
  • Plastic granules
  • Ceramic glazes
  • Compost
MF BUNDLEE-V 7
Fuels
  • Coal
  • Pellets
  • Olive pits
MF BUNDLEE-V 8
Animal Feed
  • Ingredients, additives (Premix) and supplements for animal feed
  • Bird seed
  • Animal feed
  • Fish food
MF BUNDLEE-V 9
Pet Food
  • Pet Food
MF BUNDLEE-V 10
Forestry
  • Wood chips
  • Sawdust
  • Wood shavings
  • Bark
  • Mulch
  • Peat moss
  • Soil
MF BUNDLEE-V 11
Minerals and Aggregates
  • Cement
  • Clay
  • Sandstone
  • Gravel
  • Sand
  • Talc
MF BUNDLEE-V 12
Cat litters
  • Cat litters
MF BUNDLEE-V 13
Metal Hardware
  • Metal hardware
