Open Mouth Bagging machines

IABA 600 S Automatic Bagging Machine

series IABA

Automatic bagging machine for gusseted open-mouth bags, ideal for packaging granular products in a wide range of formats.

Up to 10 BPM speed
Highlight Great flexibility
IABA 600 S 2

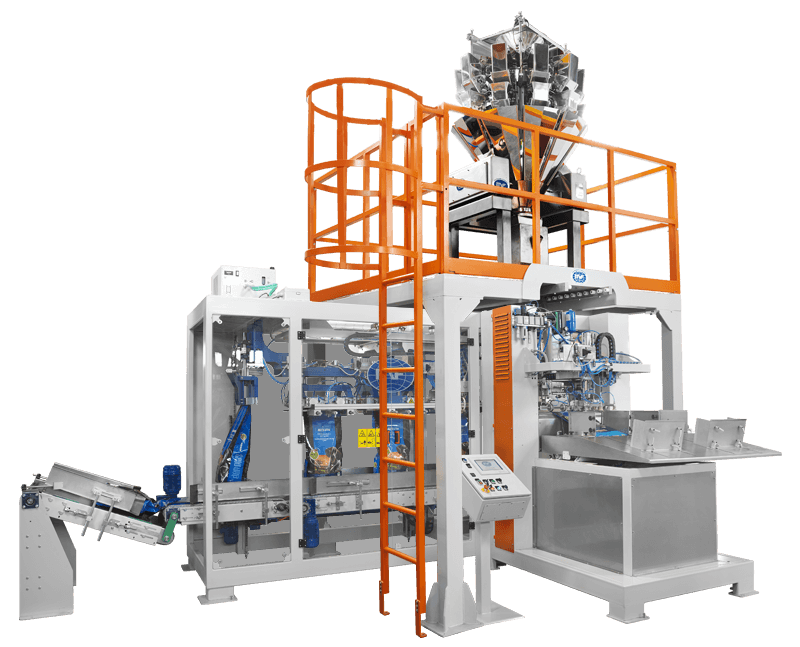

The IABA 600 S is an automatic bagging machine for medium production rates.

IABA 600 S is the standard model in the IABA series for outputs up to 600 bags/ hour and bag sizes ranging from 7 to 20 kg.

It can process pillow/flat and gusseted bags with maximum dimensions of 550 x 1,100 mm. Step-by-step handling ensures maximum efficiency and precision.

The bags pass from the filling area to the subsequent closure on a special conveyor belt. Above, a pair of transfer arms guides and inserts them into the edge-guide conveyor.

The packaging materials that can be processed are paper, polyethylene (PE), and laminated raffia.

In line with specific customer requirements, various closing systems and additional options can be applied.

These include simple stitching, folding, crepe paper, heat/pulse welding and pinch-top.

The fully enclosed stainless steel one-piece construction prevents the dispersion of dust in the working environment.



The possibility of combining different weighing and sealing systems makes it a perfect solution for a wide variety of products.

The most common include powdered products such as flour and milk powder as well as cereals and pet food.

The machinery is designed, assembled and tested at our production facilities in Italy.

Request information

Download pdf
IABA 600 S 3

FEATURES AND BENEFITS

There are many reasons to choose our products

  • 01 Adaptability to different formats, simply and quickly
  • 02 Bag opening and presentation in a unique solution for increased processing efficiency
  • 03 Product compacting devices
  • 04 Chain conveyor unit for firmer holding during transport to the closing station
  • 05 Compatible with various types of net weight weighing machines with gravity, belt or screw dosing machines, for the different types of product processed
  • 06 The parts in contact with the product are in stainless steel
  • 07 Automatic control of the correct operating cycle
  • 08 Security and access control integrated system
  • 09 Touch-screen operator panel
  • 10 Self-diagnosis system for anomalies and verification via display.

DIFFERENT OPTIONS

FOR A PERFECT SOLUTION

Marking and labelling systems

Framework in 304 or 316 stainless steel

Pinch-top bags closure

Parts in contact with aggressive materials in AISI 304 or 316 stainless steel

Bag fold-over and sewing device

Device for application of crepe tape and trimming knives

Sealing systems with impulse or "hot bar" technology

Air extraction device

Additional elliptical bag spout

Check weigher and metal detector systems

Remote assistance
