Open Mouth Bagging machines

IABA 800 S Automatic Bagging Machine

series IABA

Automatic bagging machine for gusseted and non-gusseted open-mouth bags. Ideal for medium production and packaging granular products in a wide range of formats.

Up to 15 BPM speed
Highlight High production
IABA 800 S 2

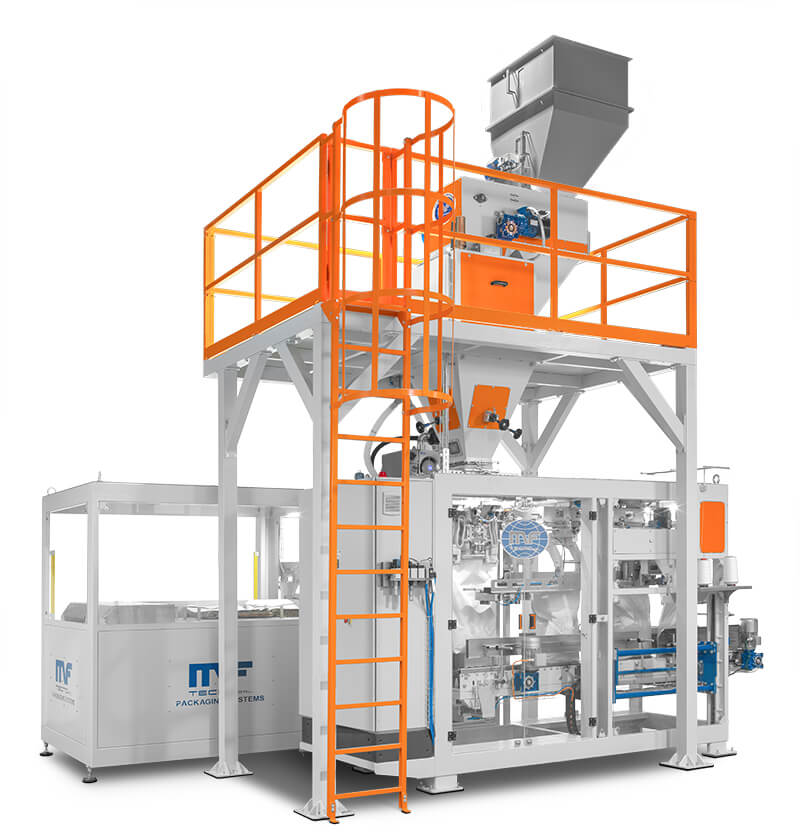

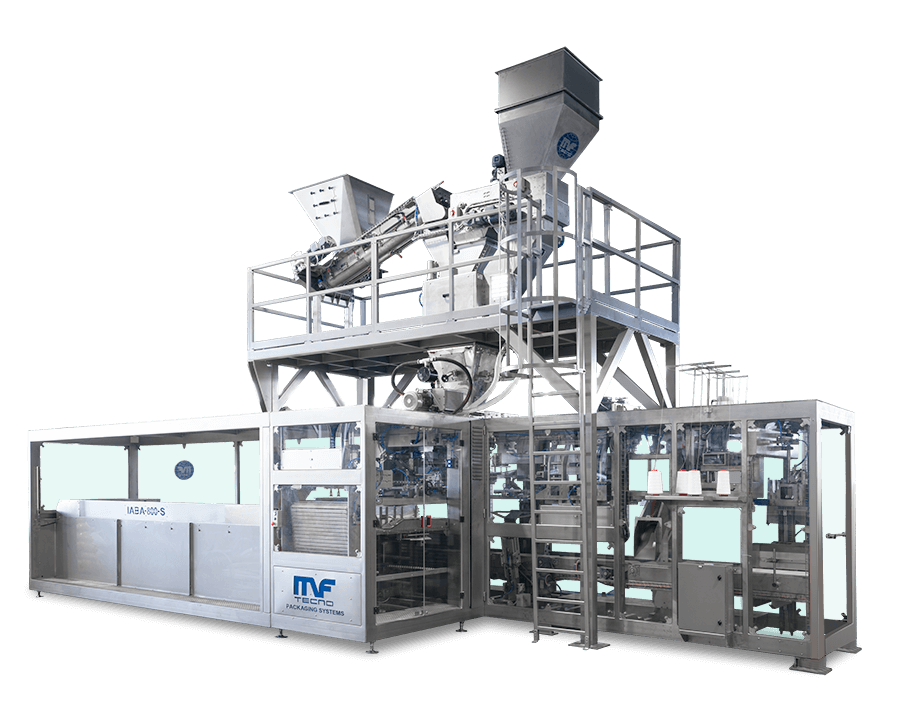

The IABA 800 S is an open-mouth packaging machine for gusseted and non-gusseted open-mouth bags.

Ideal for medium production levels, it can reach outputs of up to 900 bags per hour across a wide range of formats.

 It can process bags with dimensions ranging from a minimum of 180x450 mm to a maximum of 550x1,100 mm.

The materials that can be used include paper, aluminised paper, polyethylene (PE), polypropylene (PP), and laminated raffia.

Its simple construction and movement make it suitable for any application.
It is ideal for medium and high-flowing granular products such as animal feed, rice, grain, malt, and maize.

During the bagging process, once the bag has been filled and formed, it is moved from the filling area to the closing area by a specialised conveyor belt.
At the top, transfer guides direct the bag into an edge guide belt system - enabling safe handling even for unstable or fluidised products.

A touch screen control panel allows effective monitoring throughout the entire process while its fully enclosed stainless steel monobloc structure ensures reliability and durability along with excellent protection against dust emissions in working environments.

This complete machinery is designed and tested at our headquarters in Italy ensuring top quality control.

Request information

IABA 800 S 3

FEATURES AND BENEFITS

There are many reasons to choose our products

  • 01 Adaptability to different formats, simply and quickly
  • 02 Three stack bags store with rotating destacker.
  • 03 Bag opening and presentation in a unique solution for increased processing efficiency
  • 04 Product compacting devices
  • 05 Chain conveyor unit for firmer holding during transport to the closing station
  • 06 Compatible with various types of net weight weighing machines with gravity, belt or screw dosing machines, for the different types of product processed
  • 07 The parts in contact with the product are in stainless steel
  • 08 Automatic control of the correct operating cycle
  • 09 Security and access control integrated system
  • 10 Touch-screen operator panel
  • 11 Self-diagnosis system for anomalies and verification via display.

DIFFERENT OPTIONS

FOR A PERFECT SOLUTION

Marking and labelling systems

Framework in 304 or 316 stainless steel

Pinch-top bags closure

Parts in contact with aggressive materials in AISI 304 or 316 stainless steel

Bag fold-over and sewing device

Device for application of crepe tape and trimming knives

Sealing systems with impulse or "hot bar" technology

Air extraction device

Additional elliptical bag spout

Check weigher and metal detector systems

Remote assistance

Your products

FIND OUT WHICH PRODUCTS YOU CAN PACKAGE WITH THIS MACHINE

IABA 800 S 4
Foodstuffs
  • Pastry premix
  • Coffee
  • Legumes
  • Rice
  • Salt
  • Sugar
  • Tea
  • Dried fruits
IABA 800 S 5
Cereals and Seeds
  • Cereals
  • Alfalfa
  • Silage
  • Sorghum seeds
  • Sunflower seeds
  • Maize seeds
  • Soybeans
IABA 800 S 6
Chemicals
  • Washing powders
  • Fertilisers
  • Polymers
  • Plastic granules
IABA 800 S 7
Fuels
  • Pellets
  • Olive pits
IABA 800 S 8
Animal Feed
  • Bird seed
  • Animal feed
  • Fish food
IABA 800 S 9
Pet Food
  • Pet Food
IABA 800 S 10
Forestry
  • Wood chips
  • Bark
IABA 800 S 11
Minerals and Aggregates
  • Sandstone
  • Gravel
  • Sand
IABA 800 S 12
Cat litters
  • Cat litters
