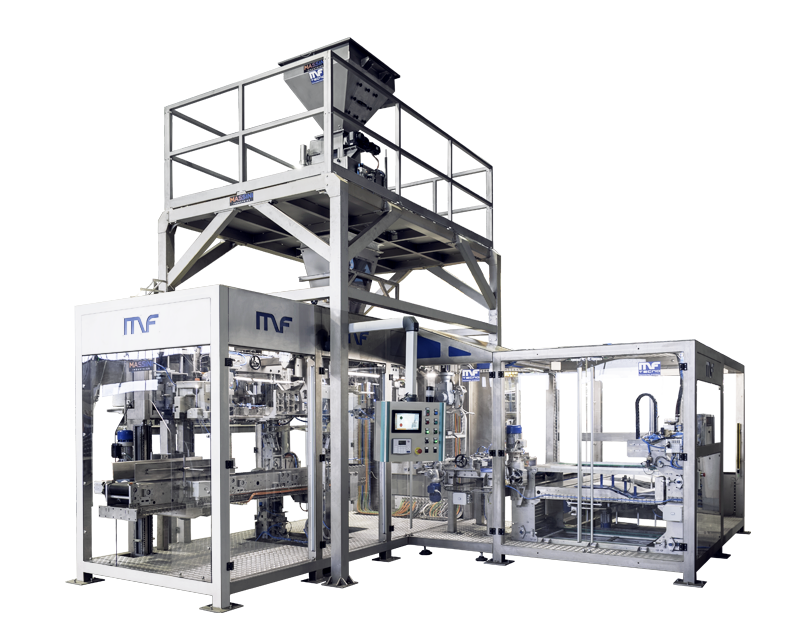

The IABA 1000 is an automatic bagging machine for open-mouth bags, with or without gussets, designed for high production rates.
It achieves a production capacity of up to 1,100 bags per hour and handles a wide variety of formats and materials.
Ideal for granular and free-flowing products such as feed, rice, wheat, corn, sugar, pet food and seeds.
It is suitable for packages from 5 to 50 kg, depending on the product and the dosing system installed. It can also be integrated with various weighing and filling systems, selected according to the characteristics of the material.
It handles bags with approximate dimensions from 180 x 450 mm up to 550 x 1100 mm. It supports paper, aluminised paper, polyethylene-coated paper, PE polyethylene and laminated raffia.
The machine handles open-mouth and gusseted bags, even with handles. Format changeover is quick and orderly.
How does it work

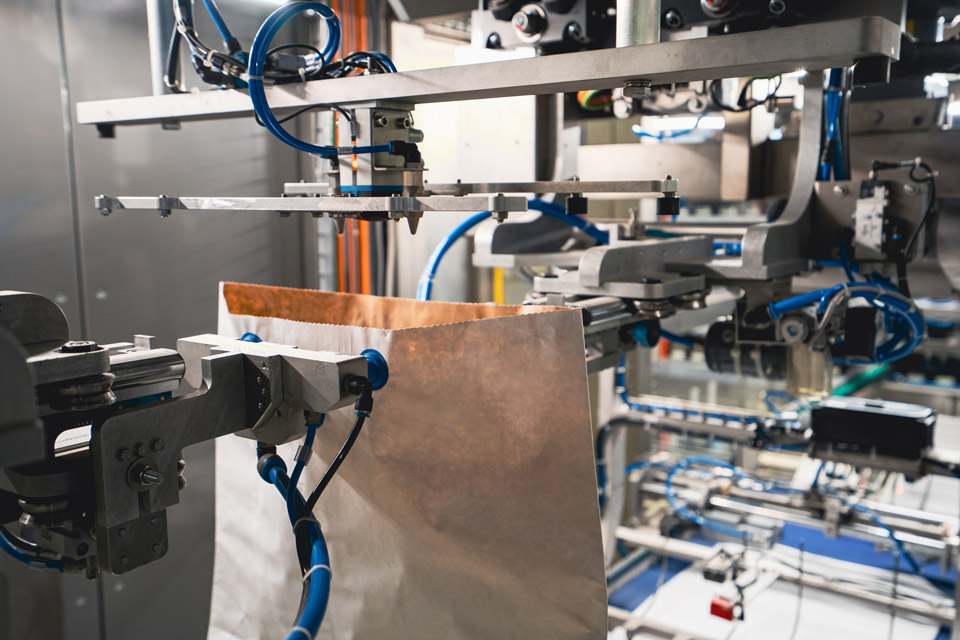

The bag preparation station speeds up the machine's cycle times and achieves higher production rates than other models.

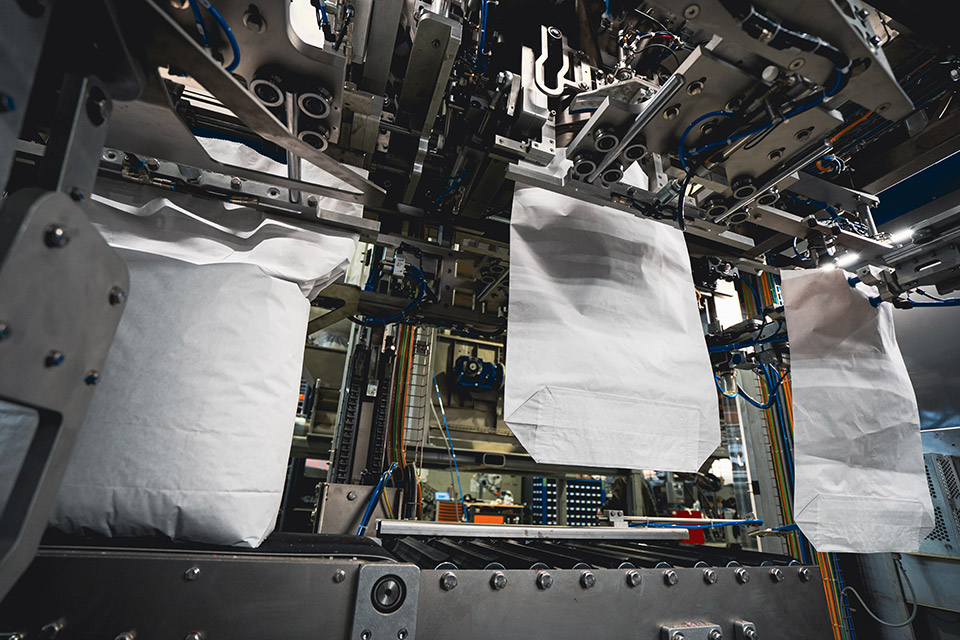

After filling and shaping, the bag is transferred to the closing station via a dedicated conveyor belt. At the top, one or two transfer arms guide the bag into specialised conveyor belt, maintaining stability and control even with fluidised products.
Features and control
The IABA 1000 supports various sealing systems, including simple sewing, fold stitching, crepe paper, heat welding, impulse sealing and pinch top.
The fully enclosed stainless steel monobloc structure ensures strength, reliability and dust containment in the work area. The modular configuration allows for compact integration into existing lines.
The touch screen operator panel allows control of the work cycle, monitoring of production parameters and immediate reporting of anomalies.
FAQ –
What weight range can the bagging machine handle?
This model is suitable for packages ranging from 5 to 50 kg, depending on the type of product handled and the dosing system installed.
What bag formats can it work with?
The bagging machine handles open-mouth bellows bags, with or without handles, with dimensions ranging from a minimum of 180 x 450 mm to a maximum of 550 x 1100 mm.
What products can the IABA 1000 bagging machine package?
This IABA is specifically designed for granular and free-flowing products such as feed, rice, seeds, sugar and pet food.
What is the maximum production capacity?
Thanks to the bag preparation station that optimises cycle times, the IABA 1000 achieves a production capacity of up to 1100 bags per hour.
Can the machine be integrated into existing packaging lines?
Yes, its monobloc structure and modular configuration are designed for compact integration even in small spaces. Its modular configuration allows for compact integration into existing production lines.
