Bagging machines

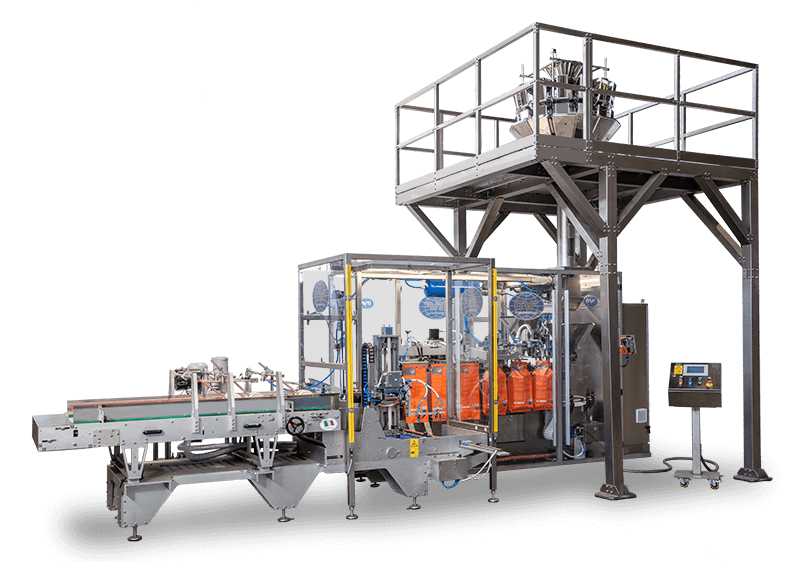

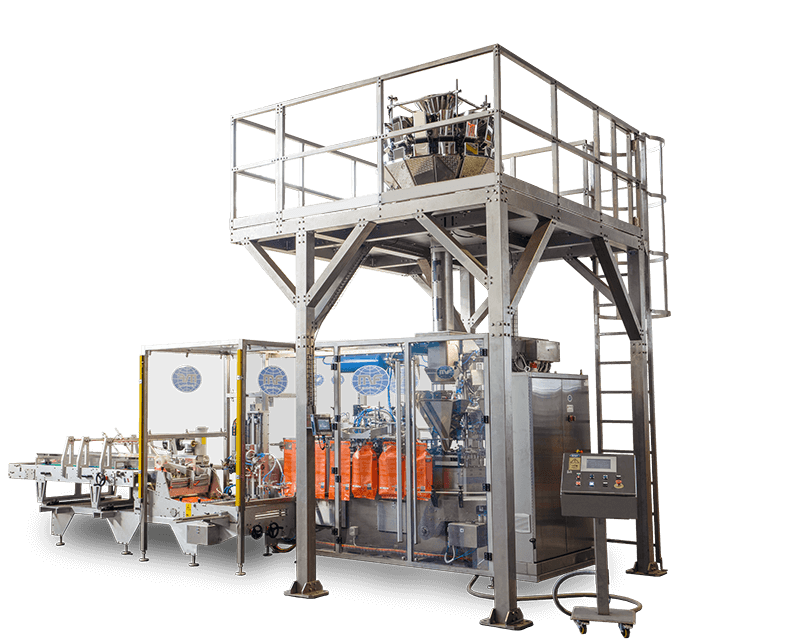

MF POUCH 3000 automatic bagging machine

series POUCH

Intermittent automatic bagging machine for "stand up" pouch (Doypack) or square bottom open mouth bags. Ideal for medium and high production.

Up to 50 BPM for speed

Highlighted High production - Small formats

The MF POUCH 3000 automatic bagging machine for open mouth bags, made entirely in stainless steel, is ideal for packaging different food products with particular features regarding fragility, flow and granule size such as pet-food, baked products, sweets, nuts, snacks, legumes, cereals, etc.

The "step by step" movement of the packages is achieved by a chain conveyor activated by a brushless servo-motor.

The bags are filled by a series of small product unload hoppers, which follow the packages while they are conveyed along a semi-circular curve.

Vibrating devices fitted in the lower conveyors of the automatic bagging machine facilitate filling operations.

They are closed thanks to multiple sealing stations and successive cooling.

Request information

Download pdf

Dimension min. 152 x 220 mm
Max. 260 x 550 mm

Bag types

flat, gusset, no gusset, pouch

Bags Material

aluminised paper, PE, PE coated paper, PP

FEATURES AND BENEFITS

There are many reasons to choose our products

01 Bag opening and presentation in a unique solution for increased processing efficiency
02 Possibility of handling packages with re-sealable closure (zip)
03 Filling system that keeps the product from spilling and prevents possible external contaminations.
04 Compatible with various types of weighing machines: net weight multi-head with gravity dosing machine, belt for the different types of product processed
05 The parts in contact with the product are in stainless steel
06 Automatic control of the correct operating cycle
07 Security and access control integrated system
08 Touch-screen operator panel
09 Self-diagnosis system for anomalies and verification via display.

DIFFERENT OPTIONS

FOR A PERFECT SOLUTION

Marking and labelling systems

Framework in 304 or 316 stainless steel

Parts in contact with aggressive materials in AISI 304 or 316 stainless steel

Sealing systems with impulse, "hot bar" or ultrasonic technology

Air extraction device

Check weigher and metal detector systems

Remote assistance
