Product loading and transport

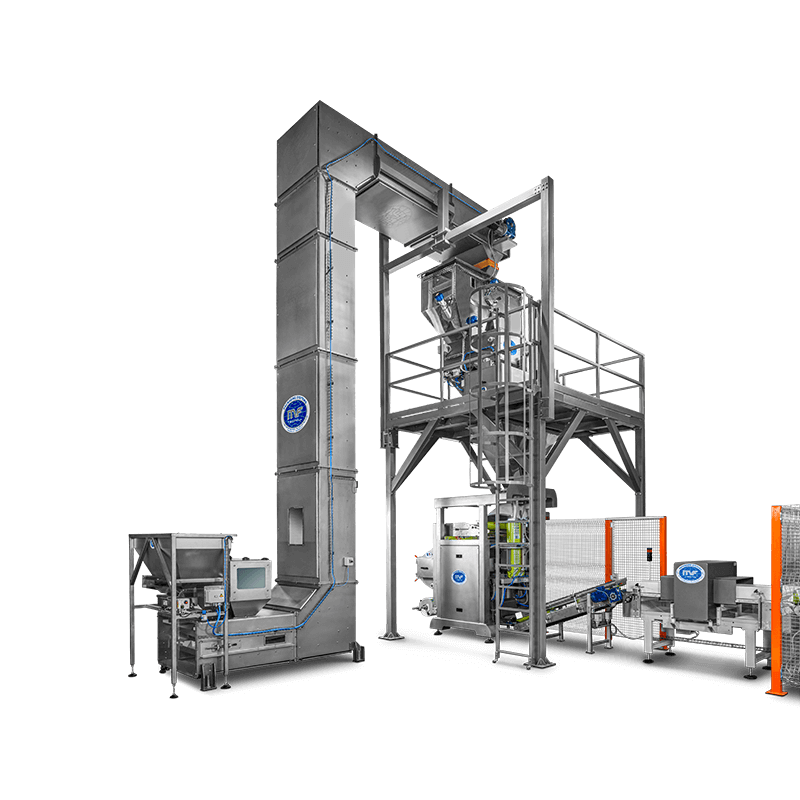

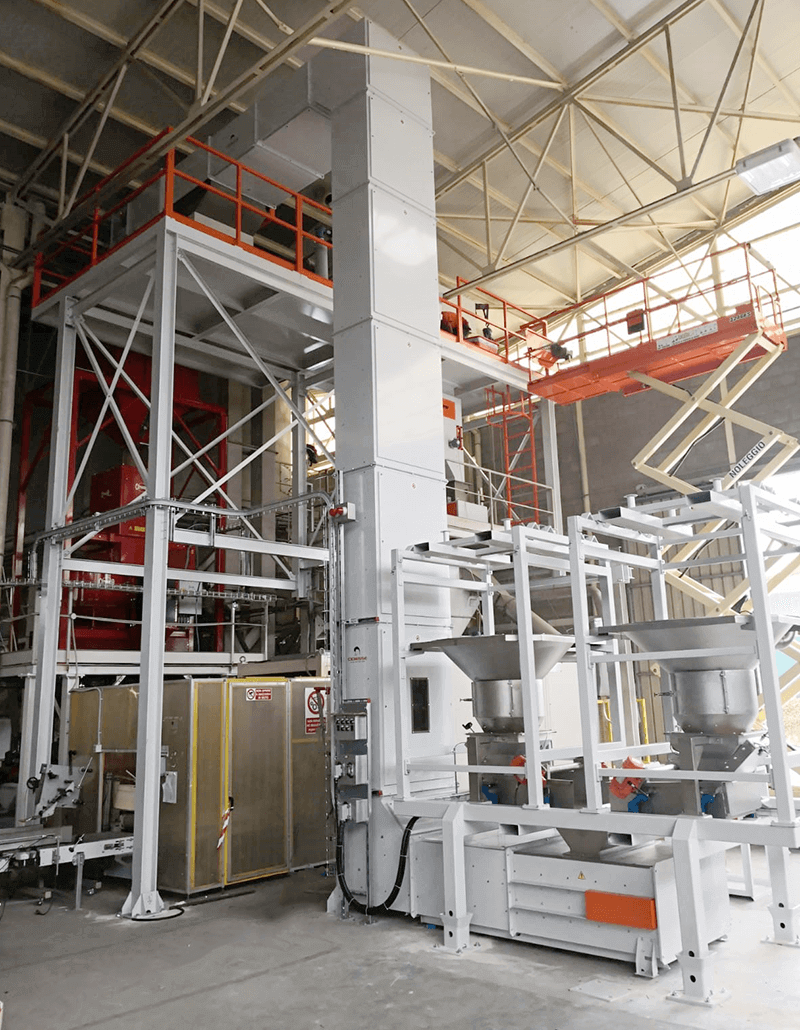

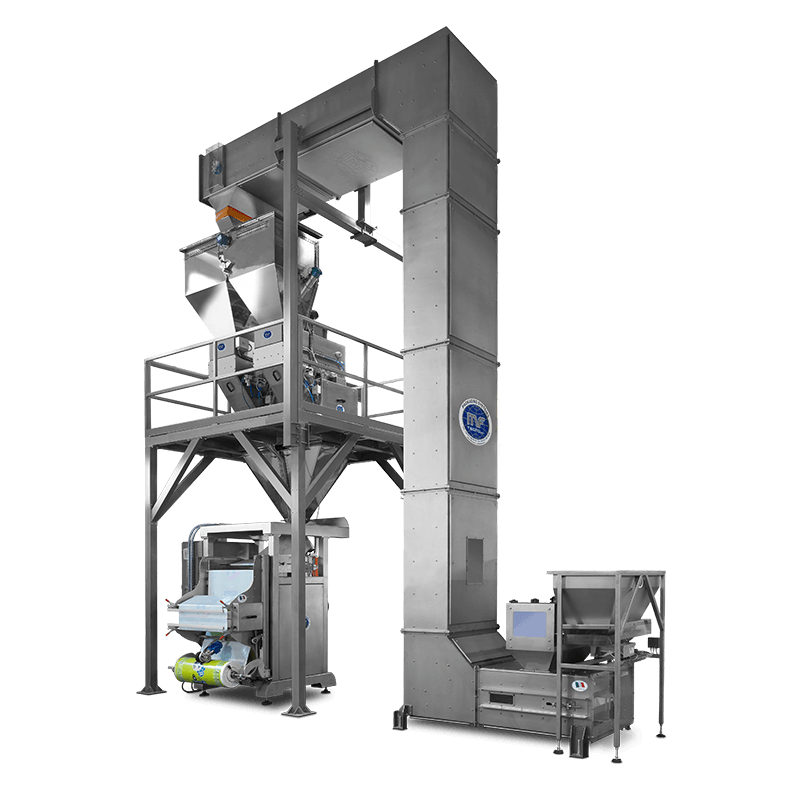

Pendulum bucket elevator

The Pendulum Bucket Elevator is the ideal solution for conveying fragile and delicate granular products, whose integrity must be preserved.

The Pendulum Bucket Elevator is the compromise for conveying delicate products at a height, thus guaranteeing integrity.

Its modular structure allows it to be used for the most varied requirements, allowing it to be installed in confined spaces.

The wide range of models allows its use in many sectors, from food, to chemical, to animal feed.

The possibility to have a variable number of loading and unloading points, guarantees maximum flexibility of use.

Request information

Download pdf

FEATURES AND BENEFITS

There are many reasons to choose our products

01 Very versatile
02 Wide range of models with capacities up to 30 m³ per hour
03 The modular structure allows many assembly combinations with space saving
04 Maximum respect of the integrity of the product conveyed
05 Cleanliness and no contamination of the product conveyed
06 Easy to clean inside the lift through the removable lower tray and hatches that can be opened

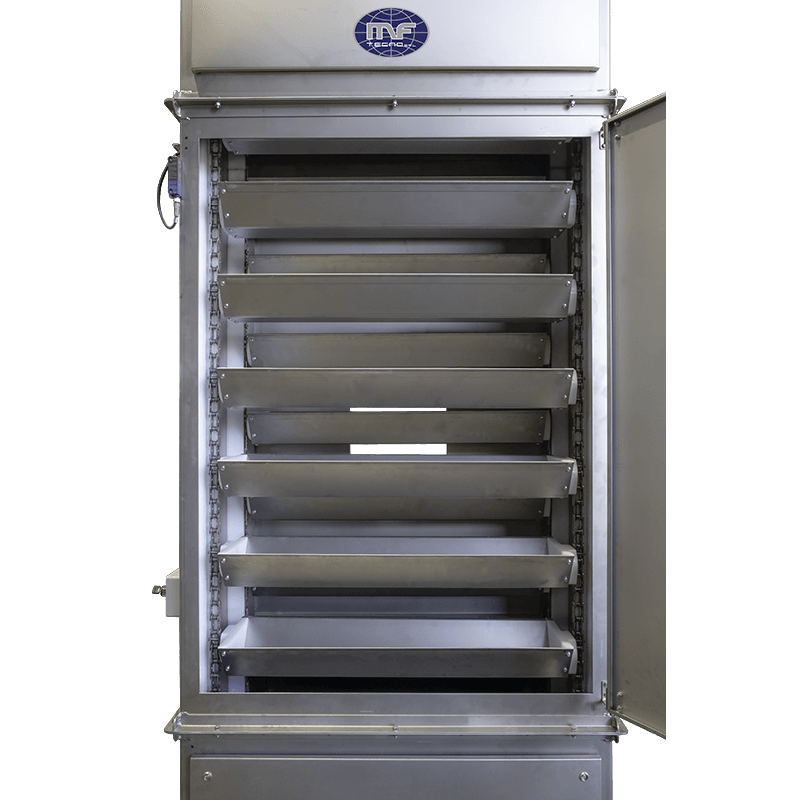

07 Easy replacement of the cups through the hatch that can be opened
08 Energy saving, in so much that it allows horizontal and vertical conveying at the same time with just one motorisation
09 Stability of use over time
10 Limited maintenance

DIFFERENT OPTIONS

FOR A PERFECT SOLUTION

Control Panel

Manufactured in 304 or 316 stainless steel

ATEX version

Version with nickel-plated chain

Multi-load system

Multi-unload system

Support and interlocking structure

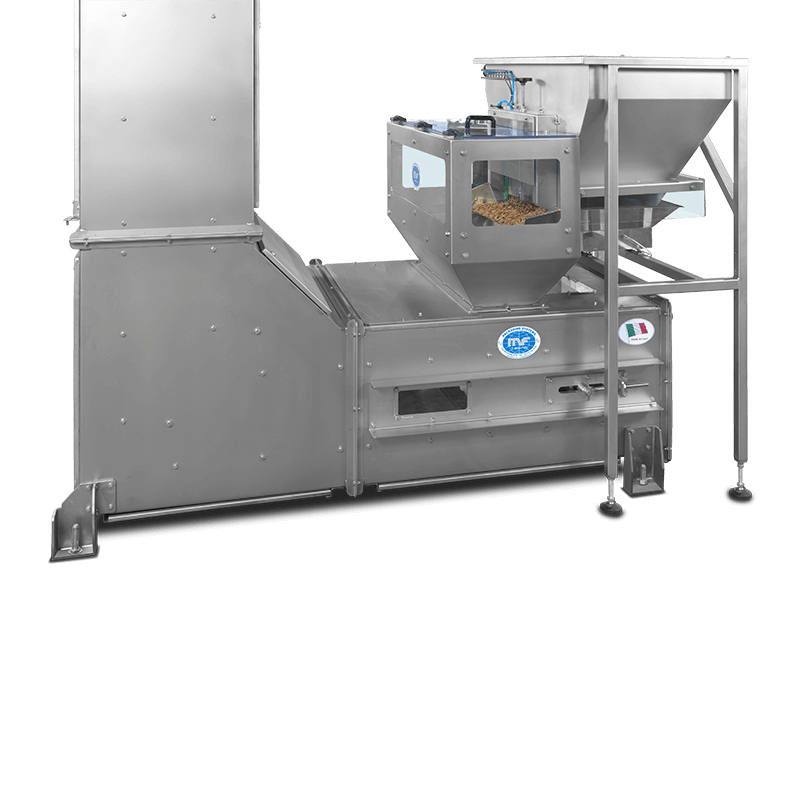

Vibrating feeder in a way to guarantee correct cup loading

Tailor-made loading hopper depending on customer requirements

Loading system through Big Bag unloading station

products

RELATED PRODUCTS

Product loading and transport Load belts Load belts for granular products up to the packaging line.

Discover more

Product loading and transport Screw conveyors Screw conveyor for powder products up to the packaging line.

Discover more

Product loading and transport Tubular chain conveyor system Modular conveyor with capacities from 2 to 30 m³ per hour, very versatile and easy to...

Discover more

Product loading and transport Vibrating screen Separator vibrating screen for cleaning and selection of the products.

Discover more

DO YOU NEED HELP?

MF TECNO is always by your side, offering you consultancy in the design phase of the packaging plant and after-sales assistance

Assistance

Become a dealer

ShowRoom

News&press

MF MAGAZINE

Discover more

Case history

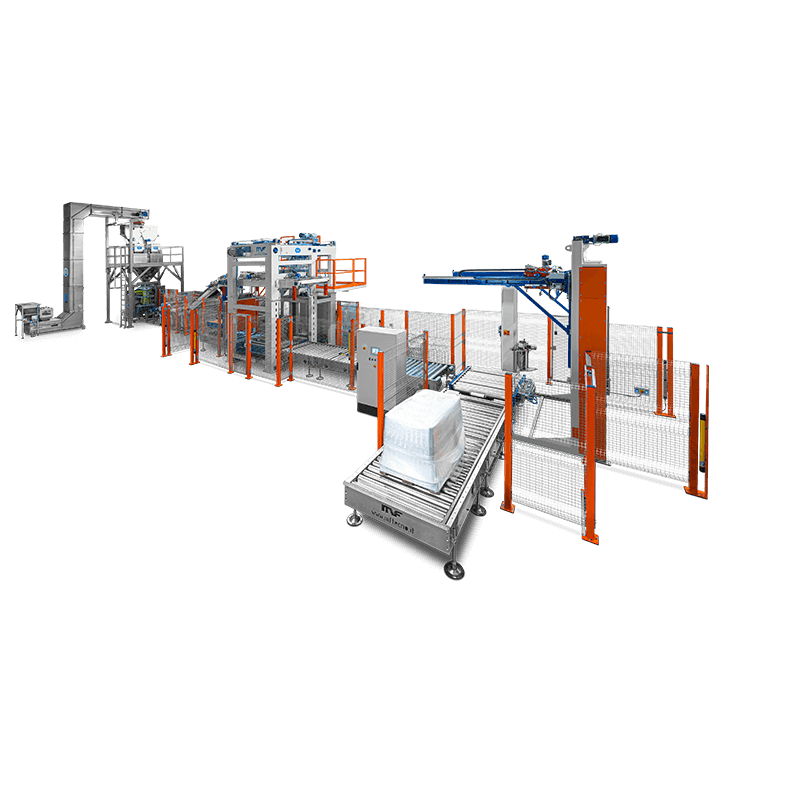

Turnkey plant for glue in granules with ad hoc customizations
